Product Description

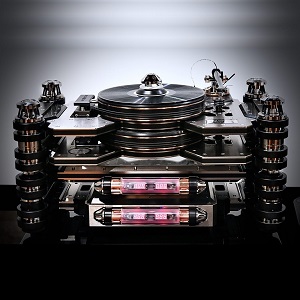

Kronos – Discovery
Kronos developed a wholly new way to attach the chassis to the suspension system,
using completely different soft clamping methods.
This treats the chassis more like the soundbox of a guitar or a violin
because in that case how it’s held dictates to some degree how it sounds.
Specifications:
Rotational speed: 33.3 rpm & 45 rpm
Tonearm length: 9 to 12 inches
Power supply: dual channel pure class A linear DC, CPU controlled
Motors: 2× Maxon DCX DC motors
Motor mounts: Delrin enclosure, height adjustable
Speed guidance system: continuous dual-loop feedback, continuous correction
Sensors type: hall sensor (platters) /optical encoder tachymeter (motors)
Correction cycle: 60 times/rotation. 0.015% max. 0.005% min
Control CPU: independent system for each platter
Platters type: resonance tuned compressed phenolic/aluminium/copper
Platter weight: 8.2kg (x2)
Drive belts: 2 silicone/Viton, one-piece moulded, 0.230/platter
Compensation pulley: Teflon and zircon bearing
Main bearings: dual hydraulic isolated inverted sleeve and ball
Shaft type: grounded heat hardened tool steel, surface treated
Ball type: precision ceramic 7mm
Suspension: full floating top suspended, level adjustable
Elastomers: 317 elastomers, Viton/silicone proprietary mix
Dimensions: (W×D×H, no SCPS): 71 × 37 × 29cm
Weight: 65kg, PSU 22.5kg, SCPS-D 22.5kg
