Berkeley Audio Design – Alpha DAC Series 3

Product Description

Berkeley Audio Design – Alpha DAC Series 3

The Alpha DAC Series 3 uses advanced technology from the award winning Alpha DAC Reference Series 3

to provide Reference Level Performance never available before at this price.

Compare the Alpha DAC Series 3 to any DAC at any price and hear its superior audio quality.

Excellent PCM audio quality from 32kHz to 192kHz

Excellent MQA Rendering quality to beyond 384kHz

Ultra-low phase noise conversion clocking

Outputs can connect directly to power amplifiers

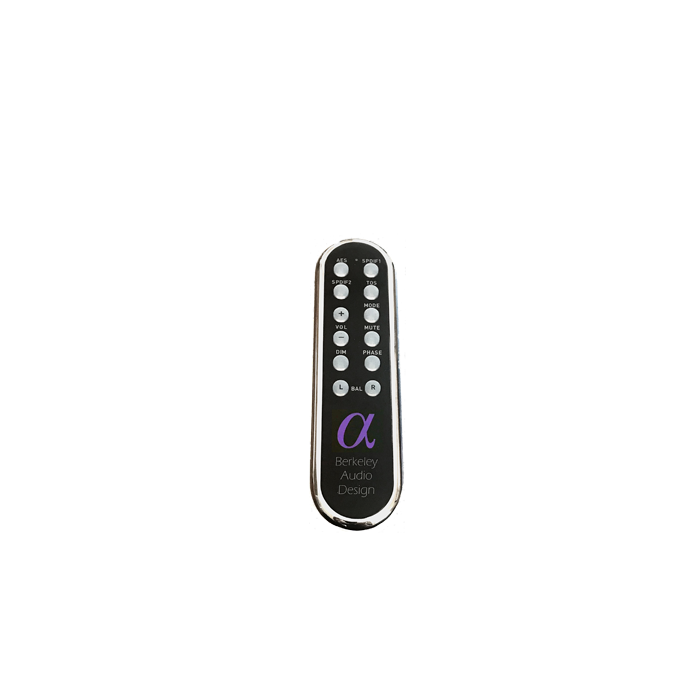

All metal Series 3 IR Remote Control

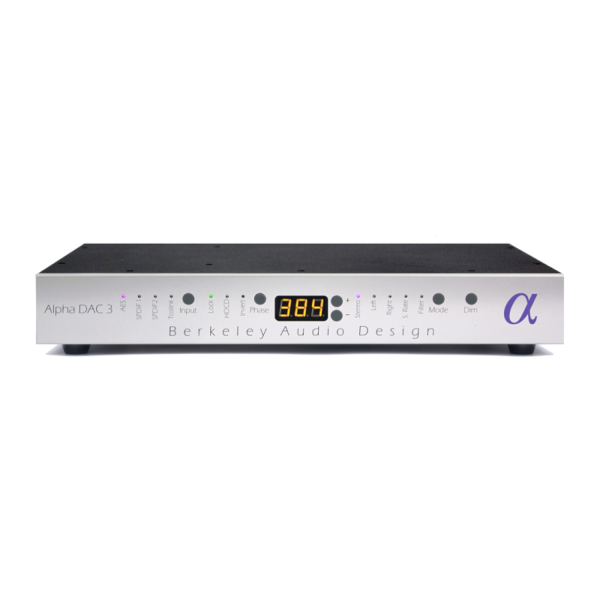

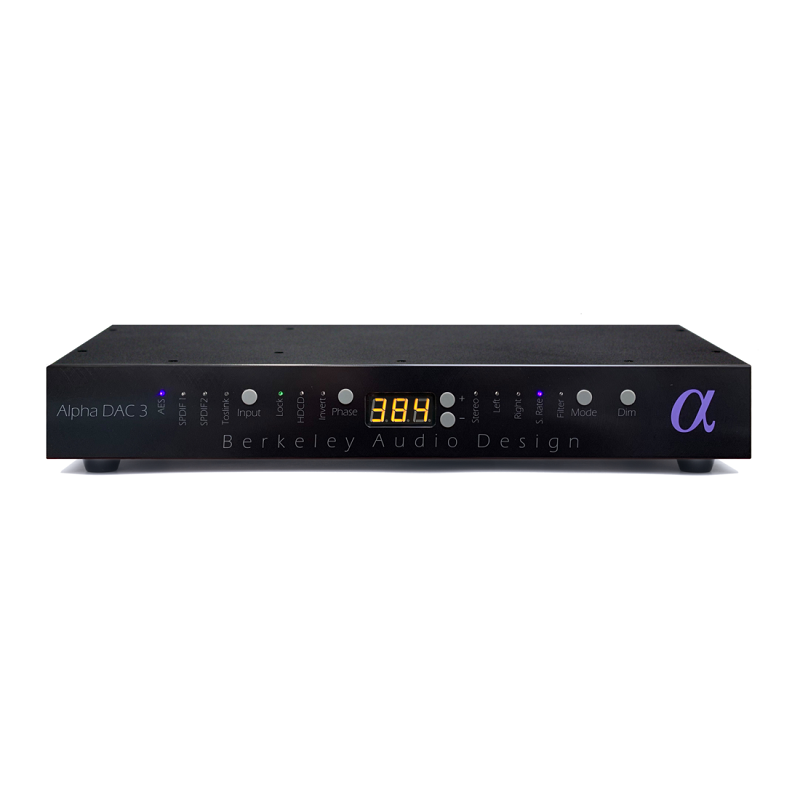

Available with a Silver or Black front panel

Controls & Indicators

Input selects AES, SPDIF1, SPDIF2 or Toslink inputs

Lock LED indicates input signal lock

HDCD LED indicates HDCD code detected

Phase sets absolute phase

Invert LED indicates absolute phase inverted

3 digit LED display of Stereo/L/R attenuation, Sampling Rate and Filter type

± controls set attenuation level and select Filter type

Mode selects Stereo/L/R attenuation, Sampling Rate and Filter type display modes

Dim selects multiple display brightness levels

Specifications:

• Input sampling rate: 32kHz to 192kHz

• Input word length: 24-bit

• Ultra-low phase noise Precision Clocking at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz sampling rates ± 100 ppm

• Two channel analog stereo outputs: XLR balanced with pin 2 positive and RCA unbalanced

• Digital Inputs: AES – XLR, 110Ω; SPDIF1 – BNC, 75Ω; SPDIF2 – BNC, 75Ω; TOSLINK – Toslink optical connector

• MQA rendering automatically detects MQA Core decoded signals and performs MQA rendering to 384kHz and above

• HDCD decoding detects 16-bit flag at 44.1kHz or 24-bit flag at all sampling rates

• Multiple digital filter options

• Balanced analog output level: +18dBu (6.15Vrms) maximum, +12dBu (3.1Vrms) or lower recommended

• Unbalanced analog output level: 3.25Vrms maximum, 2Vrms or lower recommended

• Digital volume & balance control: 0.1dB/step with .05dB/step L/R gain trim, 60dB range

• Frequency response at ≥ 88.2kHz sampling rates: ± 0.1dB from < 0.1Hz to 35 kHz, – 3dB at 59kHz for 176.4kHz and 192kHz sampling rates

• Distortion at recommended levels: all products ≤ -120dBFS

• THD+N at maximum level: < -110dBFS

• Firmware is upgradeable through signal inputs

• Enclosure dimensions: 2.3”H X 16.7”W x 10.6”D

• Weight: 11.6 lbs.

• Mains power: 100/120/240VAC, 50/60Hz

• Power consumption: 25W
